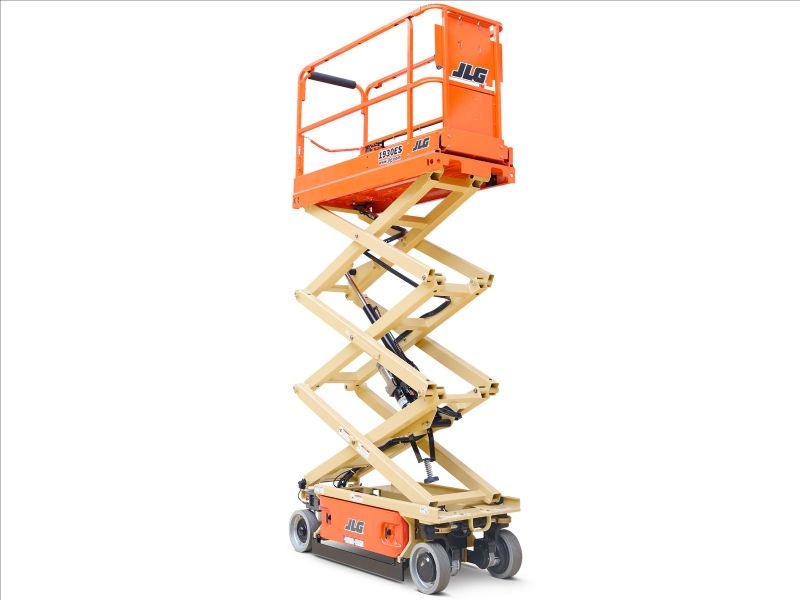

JLG Scissor lift - 6m

Description

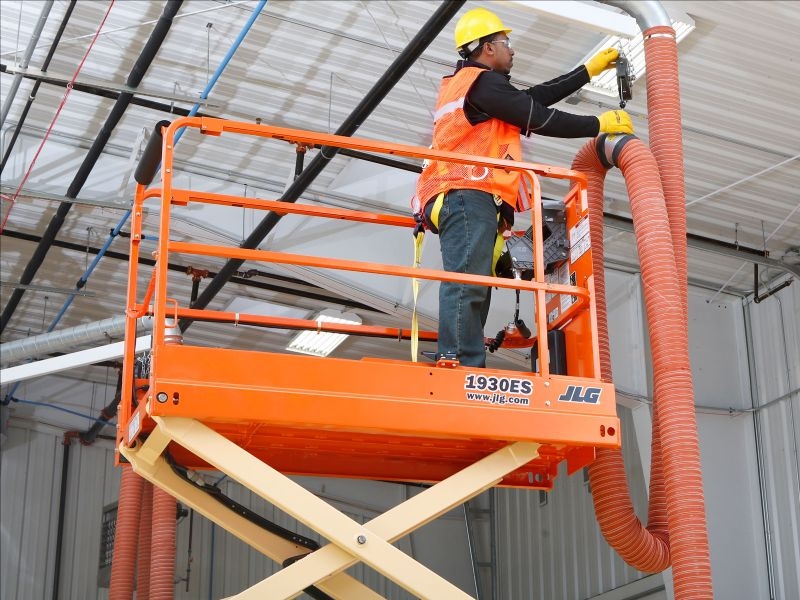

• Self-propelled scissor lift with pendant control that allows all lift and drive functions to be carried out by operators whilst the unit is elevated.
• Sturdy and ideal for narrow access.


MORE ECONOMIC - Electric power for zero emissions and near-silent running indoors.

MORE PRODUCTIVE - Boost efficiency with direct electric drive.

MORE ACCESS - Get into more places with compact dimensions and precise control system.

SMART DESIGN - Enjoy industry leading upcycles so you can work longer with higher productivity

Technical Information

• Working Height 7.72 m
• Platform Height – Elevated 5.72 m
     A. Stowed Height 2.02 m
     B. Platform Railing Height 1.10 m
     C. Stowed Height (Rails Folded) 1 1.59 m
     D. Platform Size (W x L) 0.76 m x 1.87 m
     E. Deck Extension 0.90 m
     F. Overall Width 0.76 m
     G. Overall Length 1.87 m
     H. Wheelbase 1.60 m
     I. Ground Clearance 0.09 m
• Platform Capacity 2 230 kg
•  Capacity on Optional Deck Extension 120 kg
• Lift/Lower Time 20/30 sec.
• Maximum Drive Height 5.72 m
• Drive Speed - Lowered 4.8 km/h
