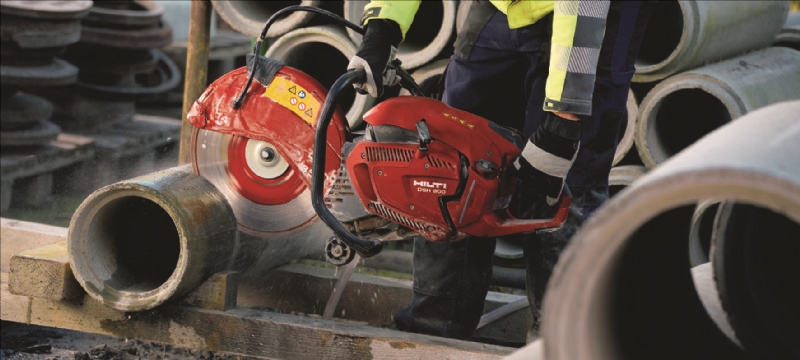

Hilti DSH 900-x - Masonry Saw

Description

• Powerful and versatile – compatible with the DSH-FSC floor saw cart and convertible to flush cut mode
• Easy start – unique auto-choke design
• Pre-tensioned belt – no belt maintenance required by the user
• Reinforced metal blade guard including belt cover with integrated wear ribs
• Easy self-service maintenance – including starter rope and filter replacement


Applications

• Laying paving: cutting curbstones and paving slabs to size
• Construction work: cutting out openings in brick or concrete walls
• Masonry work: cutting bricks and blocks to size
• Road construction: perimeter cutting in asphalt and concrete
• Sewage work: cutting metal, concrete and plastic pipes

Technical Information

• Motor cylinder - 87 cm³
• Rated power - 4.3 kW
• Wet or dry operation - Wet and dry
• Weight - 12.4 kg
• Dimensions (LxWxH) - 856 x 261 x 466 mm
• Fuel mixture - 50:1 (2% oil)
• Blade arbor range - 20 mm - 25.4
• A-weighted emission sound pressure level - 115 dB (A) ¹
• Disc diameter - 400 mm
• Cutting depth - 150 mm
• Triaxial vibration value for cutting concrete slab (ah) - 5.2 m/s² ²
